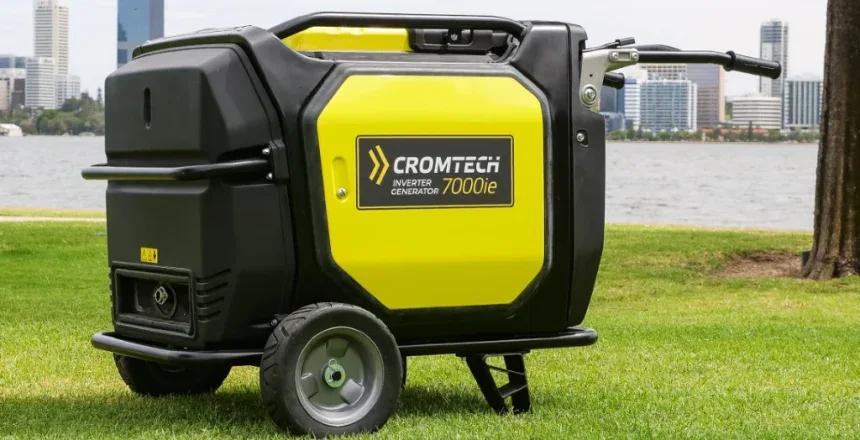

Cromtech Generator (Australia) Guide

This Cromtech Generator (Australia) can be used in various industries, including trade, agriculture, general-purpose, and recreation. Never use this generator for anything other than its intended purpose. You must become acquainted with the suitable operating and maintenance procedures. This makes the most of this product’s safety and efficiency. You should keep the owner’s handbook close to hand to refer to it at any moment when necessary.

Please keep in mind that specific techniques and specifications are subject to change without notice due to our ongoing efforts to improve our goods.

Pre-operational checking of the Cromtech Generator (Australia)

Check the oil in the engine.

Before inspecting or replacing oil, ensure the generator is mounted on a firm and level platform and that the engine is turned off before proceeding. Remove the oil filler cap and check the oil level in the machine. If the oil level is below the lower level line, fill the tank with sufficient oil until it reaches the upper-level line. Do not screw the oil filler cover back on when checking the oil level. If the oil is polluted, it should be changed.

The oil that is recommended
Use 4-stroke automotive detergent oil with API service class SE or higher grade SG, SH, or SJ, as specified by the manufacturer. General-purpose, all-temperature use of SAE 10W-30 or SAE 10W-40 is advised.

Check the engine’s fuel level.

Do not fill the tank when the engine is running or while it is hot. Before filling the tank with fuel, ensure the engine switch is in the fuel stop/close position. Take care not to let any dust, dirt, water, or other foreign things enter the petrol tank or nozzle. Before starting the engine, properly clean the split fuel from the engine. Keep open flames at a safe distance.

It is, furthermore, refilling while smoking, near an open flame, or in any other situation that could cause a fire. A fire accident may occur if this is not done. Inspect the fuel gauge to see how much fuel is left. Replace any depleted power with unleaded gasoline if the tank is running low. Ensure that the fuel filter screen is placed on the fuel filter neck. Make sure you read and understand each warning to avoid a fire hazard situation.

Checking the part and components

Before starting the engine, make sure you check the following items—fuel leaking from the fuel hose, and so on. Bolts and nuts that have worked their way loose. Components that have been damaged or broken. The generator should not be supported by or against any nearby wire.

Examining the area around the generator

Make sure you read over each warning carefully to avoid a fire hazard. Keep the space free of flammables and other potentially harmful materials. Maintain a 1.0m distance between the generator and any buildings or structures. Make sure you use your generator in a dry, well-ventilated place. Remove any foreign objects in the exhaust pipe. Keep the generator away from open flames at all times. NO SMOKING ALLOWED! Maintain a stable and flat surface for the generator. Do not obstruct the air vents of the generator with paper or other materials.

Putting the generator on a solid foundation and grounding (if applicable)

These Generators are connected to the Earth through the frame. If grounding to the Earth with an Earth spike or stake is required, the following procedures should be followed. Connect the grounding lug of the generator to the grounding spike driven into the ground or to the conductor. This should have already been grounded to ground the generator to the Earth. Connect the grounding lug of the generator to the grounded terminal of the electric tool or appliance being used. If a suitable grounding conductor or grounding electrode is not available, utilise the generator as a grounding conductor or grounding electrode.

Please refer to the Australian Standard AS/NZS 3012:2010 for the criteria for earth stakes.

Getting the generator up and running

Before starting the generator, unplug all of the appliances that are connected to it. The oil level should be checked before each operation, as described in the article “CHECK ENGINE OIL.” Ensure that the engine switch is in the ‘I’ position (On). Open the gasoline valve if necessary. The choke lever should be closed if the engine is cold.

Using this technique, draw the starter handle gently until it reaches the compression point. Return the handle into the original position and pull rapidly. After numerous attempts, if the engine still does not start, repeat the following methods with the choke lever in the “OPEN” position on the starter. Do not wholly untangle the rope. After beginning, it is recommended to allow the starter handle to return to its original work while still holding the handle.

Caution should be exercised if an electric start is installed.

Do not leave the starter motor running for more than 5 seconds. When the engine does not start the first time, turn the key back to the “I” (on) position and wait 10 seconds before trying again. Turning the key switch to the start position while the engine is running is not recommended to avoid damaging the starting motor.

If using a recoil starter to start the engine, ensure the key switch is in the “I” (on) position before pulling the starter handle. After the engines have been started, gently restore the choke lever to the “OPEN” position. Run the machine with no load to warm it up for a few minutes.

Putting an end to the Cromtech generator (stopping or shutting down)

A model with a recoil starter – Ensure that the engine switch is in the ‘O’ position (off). Unplug the power cord from the generator’s outlet and turn off the power switch of any electrical devices. Allow the engine to cool down for 3 minutes without loading before stopping it. Close the gasoline valve if necessary.

Sensor for the detection of oil

After detecting a decrease in the oil level in the engine’s crankcase. The oil sensor shuts off the engine when the machine oil level goes below a predetermined level. When the engine has come to a complete stop on its own, turn off the generator’s alternating current circuit breaker and check the oil level. The oil level should be checked if the engine does not start while the regular starting procedures are followed.

Information on wattage

When some appliances are first turned on, they require a “surge” of energy. This indicates that the amount of electrical power required to start the appliance may be more than required to keep it running. Electrical appliances and equipment are typically labelled with the voltage, cycles per second (Hz), amperage (amps), and electrical power required to operate the appliance or tool on the label. Contact your local dealer or service centre for inquiries regarding power surges caused by certain appliances or power tools. If you are beginning with electrical loads like lamps and hot plates, the same amount of watts is required to keep them running.

Current and start-up

To startup, loads such as fluorescent lamps require 1.2 to 2 times the advertised wattage of the load. During startup, loads for mercury lamps require 2 to 3 times the power indicated on the label. Electrical motors require a significant current to start. The amount of power required varies depending on the type of motor and its application. Once a sufficient “surge” has been achieved, start the motor. The appliance will only require 50 per cent to 30 per cent of the total wattage to continue operating.

Most electrical tools require 1.2 to 3 times their rated power to operate under load during regular operation. For example, a 5000-watt generator can power an electrical tool rated between 1800 and 4000 watts. Submersible pumps and air compressors, for example, require a significant amount of force to get started. They require 3x to 5x the average running wattage to get up and run. For example, a 5000w generator would be unable to drive anything more potent than an 800 to 1700w pump.

Cromtech generators require regular maintenance and attention.

Conduct the first oil change after the vehicle has been in use for twenty (20) hours. After that, the oil should be changed every 100 hours. Before changing the oil, be sure there is a proper manner to dispose of the old oil. It should not be poured down sewer drains, garden soil, or open water sources. Your local zoning or environmental standards will provide more precise instructions on proper disposal.

Changing the engine oil

Changing engine oil should occur every 100 hours. (For a new engine, change the oil after 20 hours of operation.) With a warm engine, drain the oil by removing the drain plug and the oil filler cap from the oil pan. Place the drain plug back in the machine and fill the engine with oil until the level on the oil filler cap reaches the top of the filler neck.

If using engine oil that has been contaminated or degraded or using an insufficient amount of engine oil. This will result in engine damage and a significantly reduced life span for your vehicle. Fresh, high-quality lubricating oil should be used up to the recommended level in the machine.

Ensuring that your air cleaner is in good working order is vital.

Induced dirt is caused by poorly placed, improperly serviced, or inadequate elements. Causes damage and premature wear and tear on the engine. Always maintain the element free of debris. Remove the bolt that holds the cover in place. Remove the air cleaner cover and the air cleaner element from the air cleaner.

When cleaning urethane foam, soak it in kerosene or diesel fuel. After that, soak the element in a mixture of three parts kerosene or diesel fuel and one part engine oil for many hours. Remove the mixture from the element by pressing on it, then replace it with the air cleaner.

Operation and inspected regularly.

When a generator is utilised as an emergency electrical power source. It’s necessary to regularly operate and examine the unit to ensure that it will function when needed. Petrol & diesel, and engine oil would deteriorate over time, resulting in the engine starting more difficultly and resulting in inappropriate engine functioning and a problem. Because the fuel (gasoline/diesel) will degrade with time, it is recommended that you replace it with new fuel regularly, at least once every three months.

Engine oil, gas/diesel, and air cleaner should be checked before driving. The engine should be started. A 10 minute run time is appropriate while using electrical equipment, such as lights. Keep an eye out for the following: The engine is running correctly. The output was adequate, and the indication lamp was illuminated appropriately. The engine switch functioned as it should have. There are no leaks of engine oil or fuel.
